I’ve mentioned in a previous post that, that I’ve hacked up some quick versions of Tetris to pass time while travelling (see see this post).

I’ve had this other version kicking around, which I wrote after flying back from Europe on the train from San Francisco to San Jose. Its in an iframe below. Click on it and use (a,s,d,w)

Or open in a new window

No Comments

Soko solve

Programming is a fun way to pass time.

A few years ago, I was playing lots of sokoban (or box pusher). Around the same time, I was also conducting a number of technical interviews, so was often thinking about self contained programming problems. Back as a grad student, in a single agent search class, we learned about searching with pattern databases–basically you solve an abstraction of the problem and use the solution length in that space to build up a heuristic (see this paper Additive Pattern Database Heuristics).

I’m sure there is plenty of research on the actual topic for sokoban, but I was interested in poking around the problem we were driving to Canada from California for a holiday.

The source code is up on github here:

https://github.com/nbirkbeck/soko-solve



And you can check out the demo (included in iframe below):

http://neilbirkbeck.com/soko-solve/

You can play the levels with ‘a’, ‘s’, ‘w’, ‘d’. Or you can click “solve” and “move” through the optimal path. The “Solve all” will benchmark a bunch of different methods. There is a much more detailed description of my analysis in these notes:

https://raw.githubusercontent.com/nbirkbeck/soko-solve/master/NOTES

No Comments

Shape stylized images

Its been a very long time…

I realize that there are a bunch of side projects that are worth a short blog post. About 1.5 years ago, I was working on some coding tutorials to help a friend learn to program. One of starter projects we worked on was to generate a stylized image by populating an image with a bunch of dots (or other shapes). This is inspired by colorblindness test patterns, as I really wanted to generate a bunch of test patterns for testing video color characteristics that would easily allow you to determine if color metadata (e.g., primaries, matrix coefficients, transfer functions) were being interpreted correctly by a video processing system or display.

Well, I never did actually generate the actual test patterns with this code. But we did generate a couple of interesting images. Below are example Andre the Giant

And here is another one that is a portrait of me:

Source code and sample input images on the github project: https://github.com/nbirkbeck/oneonetute

And a video:




No Comments

JavaScript depth mesh renderer

Was playing around with some old code for generating depth maps and decided to create a demo that renders the depth maps in WebGL. The color video is stacked vertically on the depth texture so that the two will always be in sync. Looked into packing the depth into the 24-bit RGB channels, but as the video codec is using YUV there was significant loss and the depth looked horrible. A better approach would be to pack the data into the YUV channels, but I didn’t try. For this example, the depth is only 8-bit.

You can see the one video here:
http://js-depthmesh.appspot.com/

Stacked color and dpeth

Stacked color and depth

js-depthmesh

, , ,

4 Comments

Updated source files for the random shape generator

Updated some source files for the random shape generator:
http://www.neilbirkbeck.com/source/meldshape-0.1.zip
http://www.neilbirkbeck.com/source/tiling-0.1.zip
http://www.neilbirkbeck.com/source/rshape-0.2.zip

,

No Comments

A voice basis

Not too long ago, Leslie and I were wondering about pronunciations of names.   We had found a site that had some audio samples of the pronunciations, and we had started playing several of them over and over again.  It sounded pretty funny listening to them, and I thought it would be neat to hear a real audio track represented with a bunch of people just saying names.  Then you keep adding more people saying more different names until you get something that “sounds” like the input.

The set of audio samples of someone saying names, become a basis for your audio signal.  I hacked together a quick program and some scripts to use a set of voices to represent an audio track.  The algorithm simply tries to fit the audio samples to the input signal and keeps layering audio to fit the residual.  It’s a greedy approach, where the best fit from the database is chosen first.  Each layer positions as many database samples over the input signal (or residual signal) in a non-overlapping way (see the code for more details).  There are probably much faster ways to dot his, perhaps using spectral techniques, but I wanted something quick and dirty (e.g., a few hours of work).

The result doesn’t sound near as compelling as I had imagined.  To emphasize that it is just people speaking names that are used to produce the target audio track, I’ve broken the target audio track into 5 second segments.  In the beginning, 5*pow(2, i) speakers are used to represent the signal for the i-th segment, so that the signal gets better as you listen longer.

The input audio track is a 60s sample from “Am I a Good Man”.

In the last segment, 10240 speakers are used to represent the signal.  Results:

five_kmw.mp3:The best example as it has the most names and the most speakers (names that start with K, M, V)

five.mp3:uses fewer names (only those that start with K)

three.mp3. uses only 3*pow(2, i) voices at each segment, so the approximation is not as good.



Code (with scripts, in a zip file):audio_fit.zip

, , ,

1 Comment

Updates, resume, cs-site, etc.

I guess this site will be undergoing an overhaul in the next little bit.  Also, fixed up some issues with my CS pages (http://www.cs.ualberta.ca/~birkbeck)

I’m trying to get better at updating my resume (and the associated page on this site).  In this regard, I’m grateful to my committee and graduate supervisors for my latest award (I’m just really slow posting this):

https://www.cs.ualberta.ca/research/awards-accolades/graduate

I’m honored to share this title with Amir-Massoud Farahmand.

, , , ,

2 Comments

View-based texture transfer

I recently worked on a project where it was necessary to transfer a texture from an existing 3D source model to another similar target model.  The target model shape is not exactly the same as the source model, and the topology and uv coordinates are different.  While I am sure that there are likely specific methods for doing this (i.e., similar to how normal maps of higher resolution geometry are baked into a lower resolution texture). However, in this example, the geometry can be quite a bit different.  In favor of using some existing tools that I have to solve this problem, I have a solution that is based on some of the work in my PhD on estimating texture of a 3D computer vision (CV) generated object when given calibrated images of the object (see section 4.4 , or this component).  In CV, since the object geometry is estimated from images, it is only an approximation of the true geometry.  For the problem of transferring a texture, we can use the same approach.

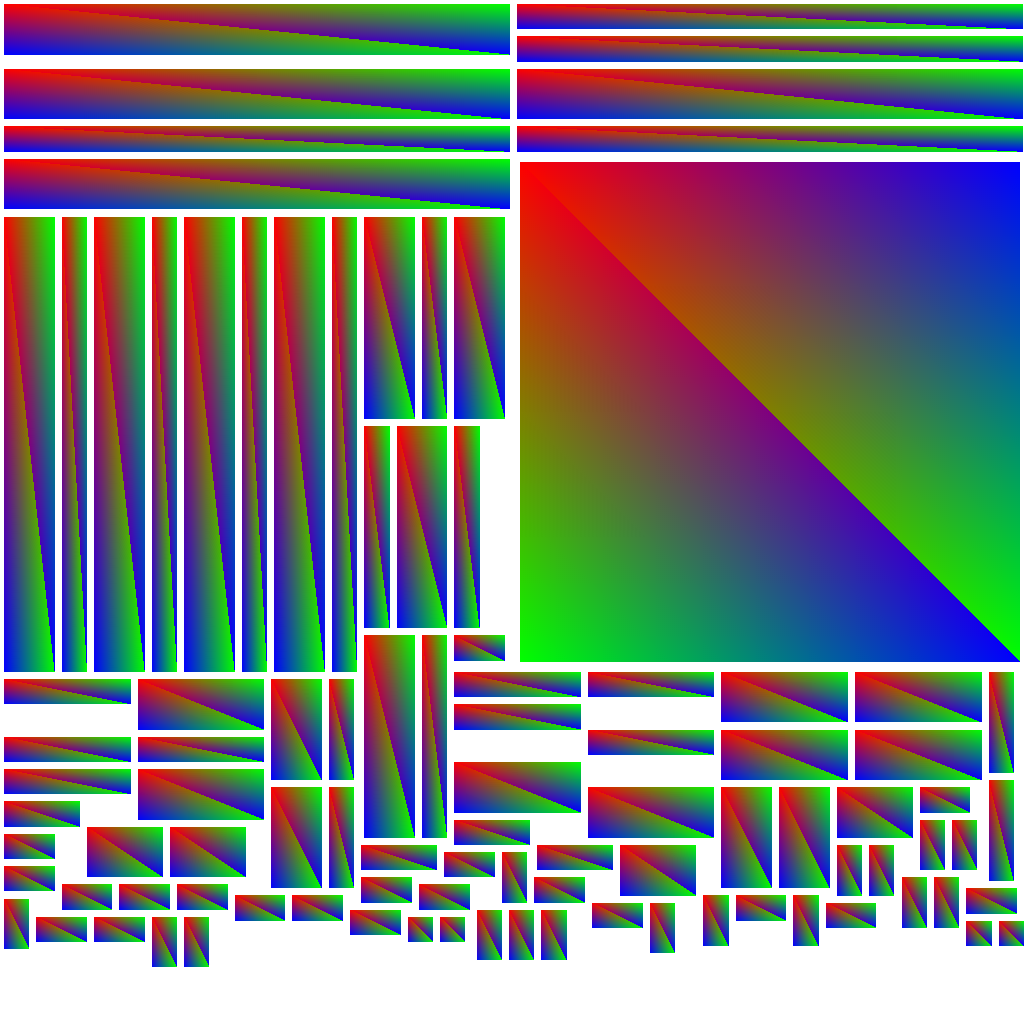

However, we are not given images of the source object, but we do have a texture so we can generate these synthetically.  In this way, we can even give important views more weight (e.g., by having more views of say the front of the object). For the sake of illustration, I will demonstrate this on the teddy example (downloaded from www.blender-models.com).  The source model has an accurate 3D geometry, and in this case the source model doesn’t have uv coordinates (the texture coordinates use the world coordinates for a volume-like texture, and the geometry encodes some detail).   I have removed some of the detail on the eyes and nose, then the object has been decimated and smoothed so that its silhouette is quite a bit different than the original input geometry.  The target object also has a set of non-optimal uv coordinates.  The differences in the target object may make it difficult to simply find the corresponding point on the source object in order to transfer the texture (similar to what I’m guessing what would be used for the baking of normal maps).

TeddyOriginal3DCrop TeddyOriginalWireframe TeddyDecimateSmoothed TeddyDecimateSmoothWireframe2
Teddy geometry (source) Teddy wireframe (source) Decimated (target) Decimated wireframe (target)

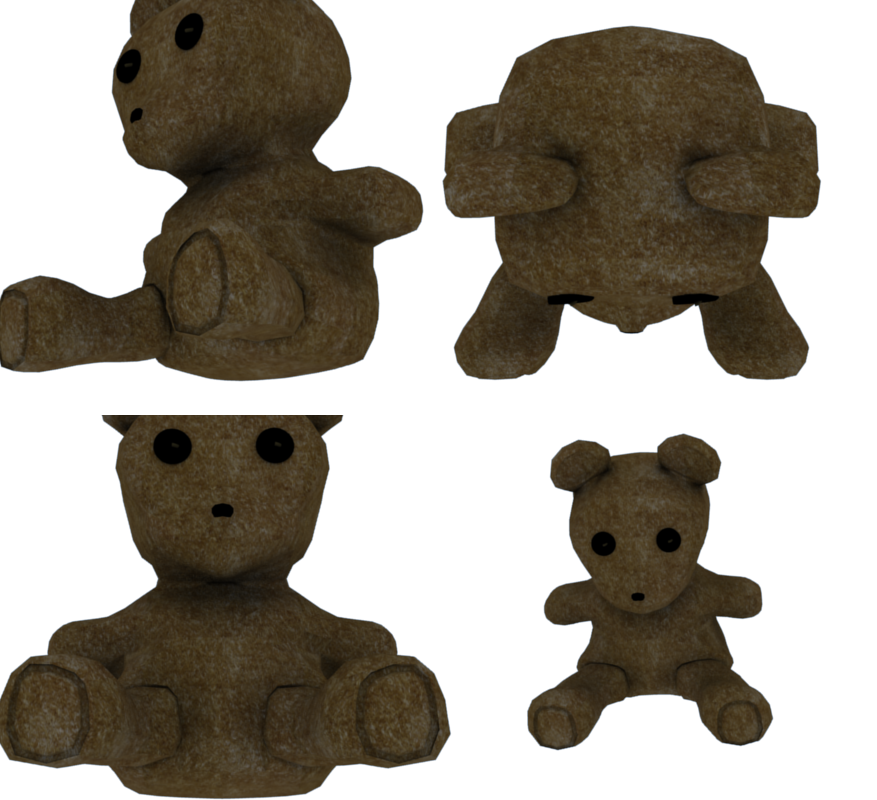

In order to transfer the texture from the source object to the target a number of synthetic images can be generated around the source object.

TeddyCameras TeddyLitInputImages

These images and the camera poses can be used as input to a texture reconstruction. In my PhD, I explored several alternatives for this problem.  Among these is simply taking a weighted average (avg), computing an optimal view for each texel with some regularization (opt), and a multi-band weighting (multi).  The last two can also be combined, so that the multi-band weight is used for low frequency and the high frequency info is grabbed from the optimal view. For the Teddy, I applied these methods to two configurations: a set of input images generated from the Teddy with illumination, and a set of images from the Teddy without illumination.  For basic texture transfer the latter configuration would be used. After applying these to the Teddy, you can see that a weighted average is blurred due to the difference in the target from the source.

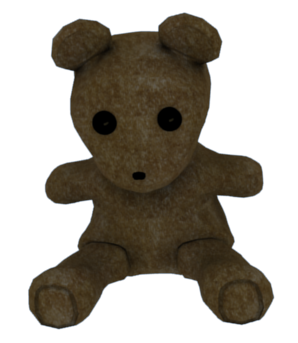

Lit images

TeddyLitInput TeddyLitAverage TeddyLitOptimal TeddyLitMulti TeddyLitMultiOptimal

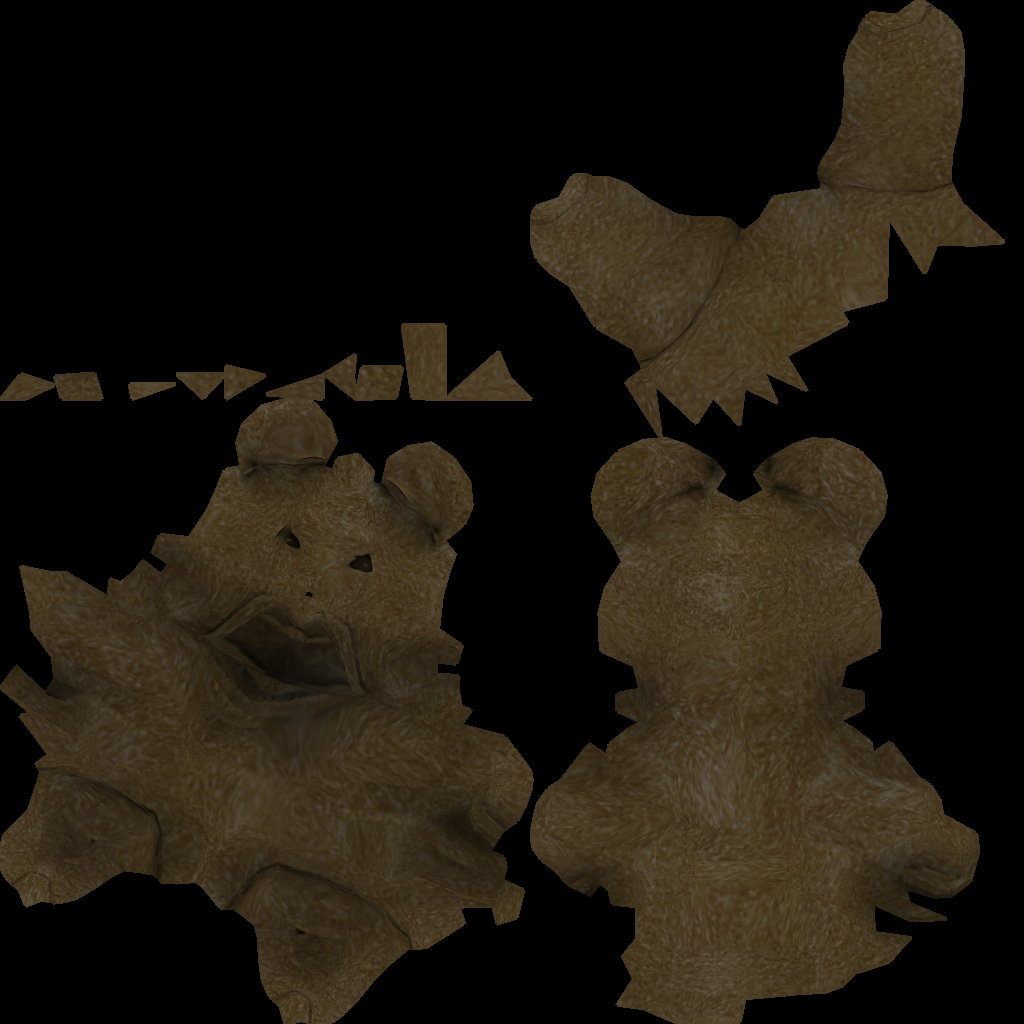

TeddyTextureAverage TeddyTextureOpt
TeddyTextureMulti TeddyTextureMultiOpt
Teddy input Average Opt Multi MultiOpt

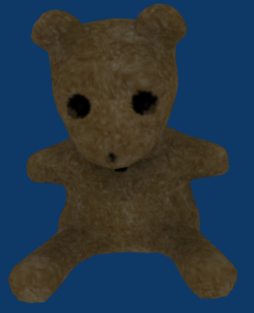

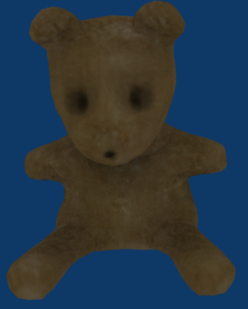

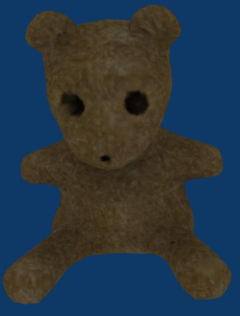

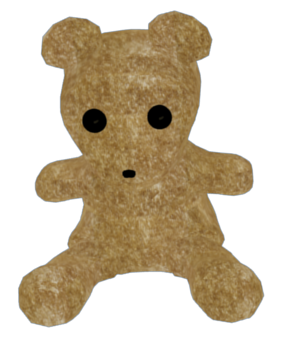

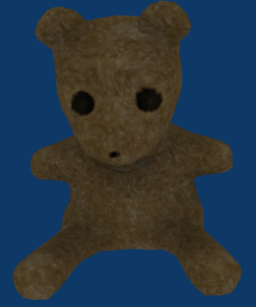

Unlit images

TeddyNoLightInput TeddyUnlitAverage TeddyUnlitOptimal TeddyUnlitMulti TeddyUnlitMultiOptimal
Teddy input Average Opt Multi MultiOpt

The opt and multi both give excellent results despite the changes in the geometry, with some small artifacts (e.g., near the eyes for multi method).  The combination of the two methods gives a good overall texture capable, fixing up some of the small artifacts.  The opt method has some trouble with places that are not visible (e.g., under the chin).  In my prototype implementation, I had some scripts to statically place the cameras and perform the rendering of the images in blender, but the cameras could be placed in order to get full coverage.  The models and images are all available in the TeddyBlog.zip file.

, , ,

4 Comments

Publications

Turns out I wasn’t very active updating the publications. It is now up to date (has things after 2008).

http://www.neilbirkbeck.com/wp/nb-pubs.php

3 Comments

Its been a long time coming…

…not only for this post, but also the cleaning that I just started on the old filing cabinet. It feels nice to get rid of old paper, like receipts & visa statements, from over 10 years ago. The best part is going through the auto expenses, and basically discarding the entire folder–this last year with only one shared vehicle has been great.

One of the most painful folders to go through is the computer receipts. Its hard to swallow how much was spent on computer things. Back when I was just starting out as undergrad, I was playing a lot of Quake 3, and I got caught up in the “trying to have the latest hardware” cycle. This was also at a time when I was working a lot during the summer and still living with my folks, so maybe it was okay to spent $500 on the latest graphics card, if only to get a few more FPS out of quake.

Just out of curiousity I am going to tabulate all of the major expenses during that time:

Surprisingly, I only found receipts for a few mice and keyboards; they probably weren’t kept (Keyboards: 3, Mice: 4).

It all started somewhere around 1999, when I had just started university the year before.  I remember upgrading our home computer for about $500, and was psyched that I could play DVDs on the TV with it.  At about this time was when we first started to use the internet.

1999 ($253)

Quake 3 Arena Boxing Day ’99, $50
FaxModem $203

2000 ($3000!)

This was about the time when I really started to waste money upgrading and spending too much time playing quake.  I think there was a time when I was upgrading our old computer from 133MHZ processors to slightly faster ones that I could find on the edm.forsale newsgroup.   I was working two jobs over the summer and I had hurt myself skateboarding, so all of my efforts went into Q3.  I can’t believe how much was spent, and I’m sure that I bought a huge 19 inch monitor for over $300 during this time.  And these are only the ones I have receipts for.  Many other things were purchased from individuals (and a few sold).

In my defense, I was helping build computers for my G/F at the time, and also for my parents, and brother (I think).  The main problem is that I was caught up in the benchmarking scene.  Its impossible to keep up with it.  The other major cost associated with this was trying to overclock my Athlon.   I had penciled in some marks on the chip to unlock the clock multiplier, and when putting the heatsink back down, I partially crushed the casing.  A little later things weren’t working well (random blue screens), during quake, god forbid.  I had to take it into two places: one charged me for more expensive ram, and the other found out that it was just that one of the cards wasn’t seated all that well.  This chipped die went on to be a decent computer for years later.

Intel Pentium MMX-233 MHZ CPU $80
3DFX Voodoo3 2000 16MB $140
VooDoo3 300 16MB $115
13GB HDD $185
Thunderbird 800, $320
Asus A7V $250
Raid Controller $160
Tower $60
Samsung FDD $20
Power Surge $35
ASUS AGP V7700 GEFORE 2 GTS DELUXE 32MB $495
Gamepad: $55
Tower and 300 Watt PSU $80 + $45
Another diagonstic: $75
Diagnostic + 128 VCRAM: $295
CD writer: $339
Epson stylus: $250

2001 ($861)

Maybe I learnt my lesson from the previous year.  2001 didn’t seem so bad

Lexmark Printer: $246
HIS ATI Video Card $45
Speakers + SB Card $80 + $32
A7V133 Socket A, $188
MSI Starforce $145
Duron 750 $90
Duron Heatsink $35

2003 ($300)
ATI 9800 AGP128MB $300, April

2004 ($593):

Pyro video camera $80

Wireless router and card $183, 2004
Printer Ink and DVD writer: $330

2005 ($1024):
iPod Nano: $250
Samsung 17 inch monitor $387 * 2

2006 ($525):
LG Monitor $250,
160GB HD $90,
MSI 7600GS $185

Somewhere in between I bought Athlon 64 and kept that up until about 1.5 years ago.

It turns out that some of these things were actually good investments.  Obviously graphics cards and printers are not.  But the two monitors I bought in 2005 are still going strong.   Same with the surge protector: don’t have to worry about the current T-storm we are having.

In the end, I’m glad I no longer try to keep up on the latest hardware, but at the time I guess it was exciting.  It also seemed like things were changing faster back then.

No Comments

Region-based tracking

I recently had to revisit some tracking from last year. In the process, I uncovered some other relevant works that were doing region-based tracking by essentially segmenting the image at the same time as registering a 3D object. The formulation is similar to Chan-Vese for image segmentation, however, instead of parameterizing the curve or region directly wiht a level-set, the segmentation is parameterized by the 3D pose parameters of a known 3D object. The pose parameters are then found by a gradient descent.

Surprisingly, the formulation is pretty simple. There are two similar derivations:
1) PWP3D: Real-time segmentation and racking of 3D objects, Prisacariu & Reid
2) S. Dambreville, R. Sandhu, A.Yezzi, and A. Tannenbaum. Robust 3D Pose Estimation and Efficient 2D Region-Based Segmentation from a 3D Shape Prior. In Proc. European Conf. on Computer Vision (ECCV), volume 5303, pages 169-182, 2008.
3) There is another one from 2007. Schamltz.

This is similar to aligning a shape to a known silhouette, but in this case the silhouette is estimated at the same time.

The versions are really similar, and I think the gradient in the two versions can be brought into agreement if you use the projected normal as an approximation to the gradient of the signed distance function (you then have to use the fact that = 0). This should actually benefit implementation 1) because you don’t need to compute the signed distance of the projected mesh.

I implemented the version (2), in what took maybe 1 hour late at night, and then a couple more hours of fiddling and testing it the next day. Version 1) claims real-time; my implementation isn’t real-time, but is probably on the order of a frame or 2 a second. The gradient descent seems quite dependent on the step size parameter, which IMO needs to change based on the scene context (size ot object, contrast between foreground and background).

Here are some of the results. In most of the examples, I used a 3D model of a duck. The beginning of the video illustrates that the method can track with a poor starting point. In fact, the geometry is also inaccurate (it comes from shape-from-silhouette, and has some artifacts on the bottom). In spite of this, the tracking is still pretty solid, although it seems more sensitive to rotation (not sure if this is just due to the parameterization).

Here are 4 videos illustrating the tracking (mostly on the same object).  The last one is of a skinned geometry (probably could have gotten a better example, but it was late, and this was just for illustration anyhow).

http://www.youtube.com/watch?v=ffxXYGXEPOQ
http://www.youtube.com/watch?v=ygn5aY8L-wQ
http://www.youtube.com/watch?v=__3-QB_7jhM
http://www.youtube.com/watch?v=4lgemcZR87E

, ,

No Comments

Linked-flow for long range correspondences

This last week, I thought I could use linked optic flow to obtain long range correspondences for part of my project. In fact, this simple method of linking pairwise flow works pretty well. The idea is to compute pairwise optic flow and link the tracks over time. Tracks that have too much forward-backward error (the method is similar to what is used in this paper, “Object segmentation by long term analysis of point trajectories”, Brox and Malik).

I didn’t end up using it for anything, but I wanted to at least put it up the web. In my implementation I used a grid to initialize the tracks and only kept tracks that had pairwise frame motion greater than a threshold, that were backward forward consistent (up to a threshold), and that were consistent for enough frames (increasing this threshold gives less tracks). New tracks can be added at any frame when there are no tracks close enough. The nice thing about this is that tracks can be added in texture-less region. In the end, the results are similar to what you would expect from the “Particle Video” method.

Here are a few screenshots on two scenes (rigid and non-rigid).room_tracks

arm_tracks

But it is better to look at the video:

, ,

No Comments

Qt UiLoader runtime erros when cross-compiling

I was recently trying to build a windows version of the level-set shape generation (initial results, which is really a derivative of JShape), which is now titled MeldShape. The Mac version has come through several revisions now, and I figured if I was going to put anything up here, it might as well include everything (a document, some binaries, as well as a post).

Anyhow, I usually use a cross-compiler to build windows applications, and in the past I haven’t had any trouble getting a working build. However, this time was different.

I have working binaries for most of the libraries that MeldShape depends on, so building MeldShape was just a matter of updating these libraries and fixing any non-portable aspects within MeldShape. There were a few of these little things, like usleep and drand48, and checking validity of a pthread with (pthread_t*) != null (win32 pthread_t is a struct with a pointer inside). These things are obviously straightforward, and wouldn’t have even been an issue had I been thinking of a portable application in the first place. The real problem came within the Qt components.

When cross-compiling on linux for win32 targets, it is relatively straightforward to setup Qt. You use wine to install the windows libraries of Qt (the mingw build) and use your linux qmake with the appropriate spec file. Typically once you get the program to link you are out of the woods. But with Meldshape, linking was fine but running was always giving a symbol error in the Qt dll’s. It didn’t work either in Wine or in windows XP.

This was super frustrating, as I don’t have a working setup in windows using MinGW to build Qt applications. And in my experience, building in MinGW is really slow compared to the cross-compiler, so I really didn’t want to have to setup my environment from scratch (building from source). So I suffered through this problem, trying to figure out why on execution windows was complaining about missing symbols in the Dll (mostly in QtCore4.dll). I have seen similar problems to these when trying to run the executable with mismatched Dll’s (especially between the mingw and msvc builds of Qt), so I figured it had to be something with the versions of the Dll’s. I was using the same version as I had built with, so that was out.

I then tried an older version of Qt (since I had been using an older version in the past), and again no luck. With no other option, I started to strip my app to a barebones sample application to see if even that would work. And sure enough it was working fine (although it wasn’t referencing much else other than QApplication). The problem seemed to be something to do with one of the other libraries I was using.

I struggled with this for a while, and finally came up with the hypotheses that this was maybe due to loading parts of the UI with QUiLoader (from UiTools). After commenting out the few parts that use forms, it actually starts to work ???? This was at the point when I was ready to say, “screw the windows build”. I mean, the application is pretty simple, and at this point it is not even worth the effort. Anyway, I’m sure I am using forms in my other applications, so I have no idea at this point why using forms are causing problems with the Qt in windows. I decide to try QFormBuilder from the QtDesigner components instead. Luckily the API is pretty much the same, so almost no code (except for the declaration of the loader) has to change. Strangely enough, QFormBuilder worked fine.

I have no idea why QUiLoader was causing problems and QFormBuilder was not. I’m happy I found the problem, but at the same time I think the only reason I found it was due to luck. In the end it took almost 6 hours to find the problem and port the rest of the code…something I figured would take maybe 2 hours.

In the next little bit, I will try and upload the binaries and the technical document (as well as create a new project page for it)…all of the things that could have been done in that time it took to track down a non-sense bug.

, , , ,

No Comments

1D peak detection with dynamic programming

Not too long ago, I was working on something where it was necessary to extract the correct locations of peaks in a 1D signal.  The 1D input signal comes from some noisy measurement process, so some local method (e.g., thresholding) may not always produce the best results.

In our case, the underlying generator of the signal came from a process with a strong prior model.  For simplicy, assume that the spacing between the peaks can be modeled as Gaussian with mean, mu, and standard deviation, sigma.  Also, assuming that the input signal is the probability of a peak (e.g., the signal is real valued, in [0, 1]), the problem can be formulated in a more global way.

For example, in a Bayes approach, the problem would be formulated as maximizing p(model | signal), where the model = {x_1, x_2, …, x_k} is the set of points where the peaks occur in the signal.  The MAP estimate is obtained by maximizing p(model | signal) ~= p(signal | model) p(model), or minimizing -log(p(signal | model)) – log(p(model)).  Assuming a simple Gaussian distribution between the spacing of the peaks, the prior, p(model), is easily defined as \sum_{i=2}^N exp(((x_i – x_(i-1)) – mean)^2/(2 sigma)^2).

For the negative log-likelihood term, we can use something as simple as -log(p(signal | model)) = \sum_{x} signal(x) * f(x; model) + (1 – signal(x)) * (1 – f(x; model)).  Where f(x; model) = 1 where for some j, x == x_j, and 0 otherwise.

On first encounter with this problem, it seemed like dynamic programming would be ideal to solve it.  In order to use Dynamic programming, we relax the unknowns, x_i (represent the ordered locations of our peaks) and allow them to take on any value in the input domain.  The dynamic programming solution is then straightforward.  In the first pass, the total cost matrix for all the peak locations is created.  For each variable x_i, we store for each possible input location, the total cost for that location and all previous variables.  In order to compute the total cost for variable x_{i+1}, each possible input location finds the best combination of x_i’s total cost, the likelihood, and the prior cost between x_i and x_{i+1}.

The only difference is that at each peak location, the likelihood for the region after that peak location is not considered (until later) and the peak location is penalized for appearing before x_{i-1} (ensures ordering).

Once the total cost matrix, C, has been computed (e.g., NxM matrix with N peak locations and an input signal of length M), the likelihood beyond x_i can be considered.   For each of the possible peak locations, we accumulate the likelihood beyond the candidate peak location  (e.g., C(i, j) = sum(neg_log_likelihood(S(j+1: M))).  If done this way, each row of the cost matrix now gives the total cost if we were to consider only i peaks in the input signal.  That is, we get the best locations of the peaks for all possible numbers of peaks.

In the following synthetic examples, the global dynamic programming method was used to extract the peaks in the input signal, as well as the number of  peaks present.  The global method used searched for up to 5 more peaks than were present in the ground truth.  For the top examples the input peaks had a mean of 14 and standard deviation of 2.  The dynamic programming method used the ground truth from the underlying model during its prediction.

Easy 4

Simple example, where a non global method would work

Easy 10

Another simple example, with more peaks, number automatically selected

Easy 4

A more difficult example with more noise (4 peaks)

Easy 10

A more difficult example with more noise (10 peaks)

Hard 4

A harder example, notice that the last peak is detected correctly, even though the input signal is almost homogeneous near it.

Easy 10

A harder example where it would be harder to select the ideal threshold.

Hard 4

The success of the global approach depends on the prior model providing some information in the presence of noise. With a small standard deviation, significant noise can be overcome (notice the high peak at around 70 in the input is not a true peak in the ground truth signal).

Easy 10

When the prior model has a large standard deviation, the global method can not as easily resolve ambiguities. In this case, the wrong number of peaks is selected and the peak near time 50 is missed.

The above tables were generated in octave (dyprog1D source code).
